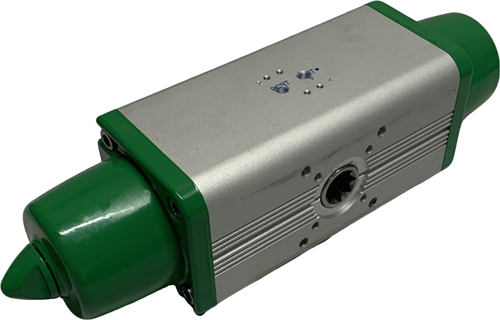

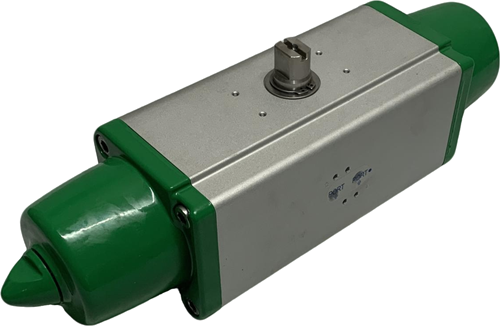

Actuatech Pneumatic Scotch Yoke Actuator GS180, Spring Return, ISO 5211 F07/F10
This Actuatech GS180 actuator is used when a ball valve or butterfly valve with an ISO 5211 F07/F10 connection must close or open automatically in the event of an air supply failure.
Features:
Model: GS180
Actuator type: Scotch yoke
Action: Spring return (single acting)
Torque: 180 Nm (breakaway torque at 5.6 bar)
Mounting standard: ISO 5211 F07/F10
Shaft shape: star shaft, 22 mm
Weight: 8.9 kg
Air consumption: 1 dm³ per cycle
Air supply: nominal 5.6 bar, maximum 8.4 bar
Temperature range: standard -20°C to +80°C (optional -50°C/+60°C or -20°C/+150°C)
Body material: aluminium alloy
Shaft material: stainless steel
Standards: EN 15714-3, ATEX 2014/34/EU
Brand: Actuatech
Application:
Thanks to the scotch yoke mechanism, the GS180 is lighter and more air-efficient than a comparable rack & pinion spring return actuator at the same torque. Suitable for fail-safe applications on ball and butterfly valves with an ISO 5211 F07/F10 connection.
Does the GS180 not exactly match your valve or torque requirement? Ebora's technical team advises on the right size from the Actuatech GD/GS series or prepares a quote directly.
