    Ball valve QB18-31122 3/8" ISO5211 F03/F04

    View everything from the category Manual ball valve
    € 23,48 € 28,41 Incl. VAT
    Add to quote listAdd to wish list
    Festo Delivery Time

    The stated delivery times are the working days or weeks indicated by the manufacturer.

    If the delivery time is critical for you, please contact us so we can verify it for you.

    On stock Ebora NL: 71
    Add to favorites

    Why Ebora :

    • We think with you
    • Clear offers
    • Flexible and proactive
    • knowledgeable
    • Product description and specifications
    • Documents

    Product description

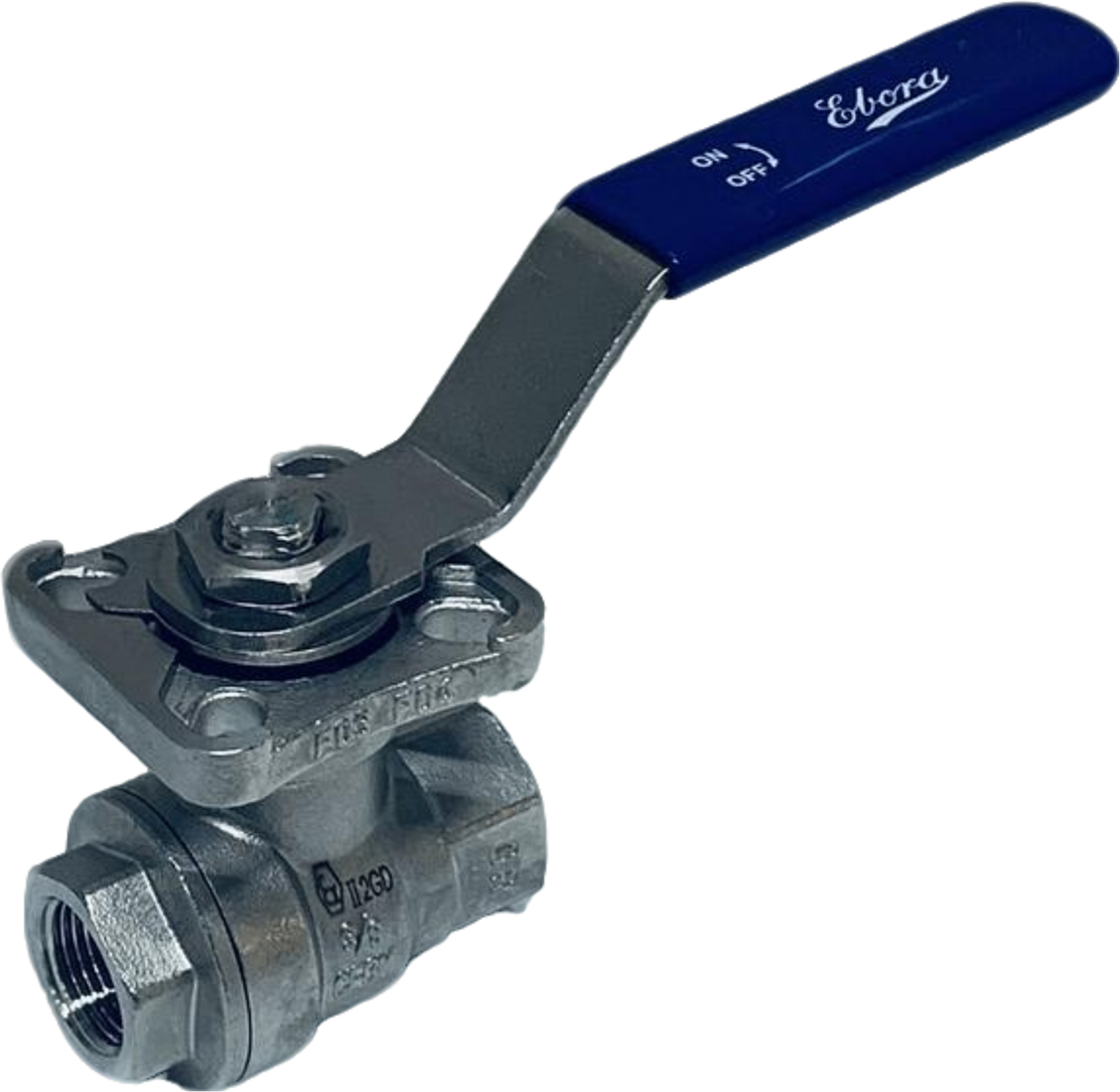

    Ball Valve Ebora QB18-31122, 3/8", ISO5211 F03/F04

    2-piece ball valve with full bore and top-flange for direct actuator mounting.

    Features:
    Type: QB18-31122
    Size: 3/8" BSPP female thread
    Construction: 2-piece, full bore
    Pressure class: PN63
    Top-flange (ISO5211): F03/F04, square 9 mm
    Body material: Stainless steel 316 (CF8M)
    Ball: floating ball
    Stem: blow-out proof
    Operation: supplied standard with handle
    Seal: PTFE
    Design: API 608
    Inspection: API 598 / EN12266
    Brand: Ebora

    Not sure about the right actuator or top-flange? Ebora's technical team is happy to advise.

    Documents

    Datasheet-Ebora-QB18-EN.pdf
    10179185, QB18-31122 Step-file

    Specifications

    ModelQB18
    Material Stainless Steel
    Additional functionalityNo
    ISOtop flange 5211F03
    F04
    Shaft shape/sizeSquare 9 mm
    Construction2 piece
    Control Hand - handle
    Size connection 3/8
    Process connection Female thread
    Pressure rating 63 PN
    Version 2-way
    Ball sealPTFE glass fiber reinforced
    Spindle sealFPM
    PTFE
    Seal PTFE/FPM
    Type of articleBall valves
    Weight232 gram
    BrandEbora
    CategoryManual ball valve
    Product code10179185
    UnitPiece (s)
