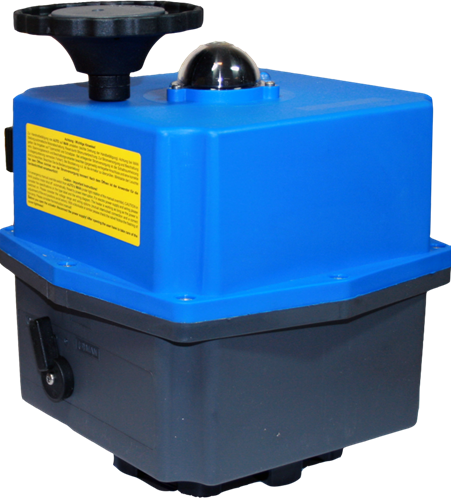

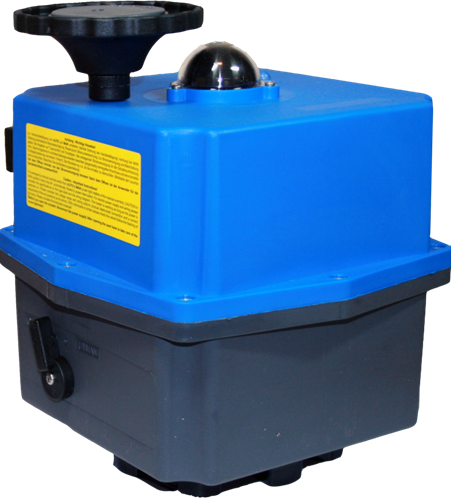

J+J Electric actuator J4C-S140 140 Nm, 24-240 V AC/DC, open/close, blue, S4C400509

J+J Electric actuator J4C-S140 140 Nm, 24-240 V AC/DC, open/close, blue, S4C400509

The J+J J4C-S140 is an electric quarter-turn actuator with 140 Nm operating torque for automating ball valves and butterfly valves. This version opens and closes the valve (on/off control) and reports both end positions via volt-free contacts.

Features:
Type: J4C-S140
Order code: S4C400509
Series: J4C
Operating torque: 140 Nm
Max. break torque: 170 Nm
Operating time 90° (unloaded): 34 s (±10%)
Supply voltage: 24-240 V AC/DC (50/60 Hz)
Current consumption (operating torque): 2.15 A at 24 V DC / 0.39 A at 240 V AC
Control: Open/close (on/off)
Working angle: 0°-90° (standard, adjustable up to 270°)
Flange (ISO 5211): F07/F10
Output drive (DIN 3337): octagonal (star) 22 mm
Protection class: IP67 (IEC 60529)
Ambient temperature: -20 °C to +70 °C
Duty rating: 75%
Motor: Brushless motor 24 V DC
Limit switches: 4 micro switches (2 motor stop, 2 volt-free feedback)
Heater: Automatic, 3.5 W
Electrical connection: EN 175301-803 form A (power), DIN 43650 form C (feedback)
Housing: Anticorrosive polyamide
Cover colour: blue
Weight: 4.72 kg
Brand: J+J

Benefits:
- Brushless 24 V DC motor: energy-efficient, quiet and low-maintenance
- Electronic torque limiter protects actuator and valve
- Manual override and visual position indicator with LED status display
- Automatic heater (3.5 W) against condensation
- Adjustable cams: working angle adjustable between 0° and 270°
- Expandable with DPS positioner, BSR fail-safe battery, potentiometer, Modbus or Bluetooth

Check the specifications above and order S4C400509 directly from Ebora.
