Product description

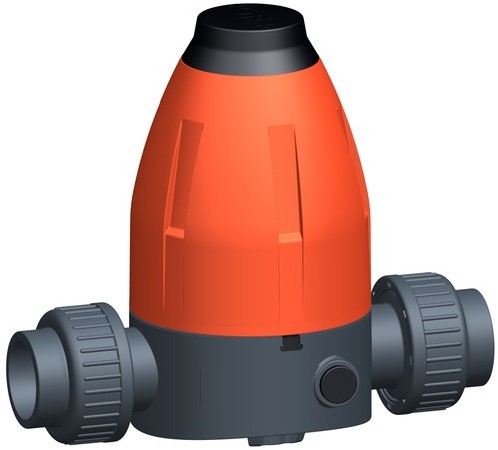

Pressure retaining valve type 586 PVC-U d20 / DN15 metric EPDM Socket
A type 586 pressure retaining valve keeps the pressure upstream of the valve constant at a set level, regardless of fluctuations in downstream flow - essential for dosing installations, filtration and processes that require a stable upstream pressure.
Item number: 161586102
Unions with solvent cement sockets metric Without manometer
Features:
Main Material: PVC-U
Material: PVC-U
Plastic Material: PVC-U
d: 20 mm
DN: 15 mm
Size: 1/2 inch
PN: 10 bar
Standard: metric
End Connection: Socket
Systems: PVC-U
Type: Type 586
Jointing Technology: Cementing
Business Field: Industry
Pressure (PN): 10
Sealing Material: EPDM

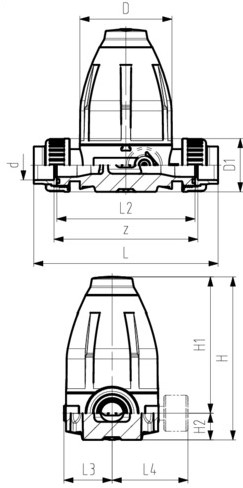

Dimensions:
D: 79 mm
D1: 43 mm
H: 132 mm
H1: 111 mm
H2: 21 mm
H3: 12 mm
L: 158 mm
L2: 120 mm
L3: 42 mm
M: M6
z: 126 mm
closest inch: 1/2 inch
