Product description

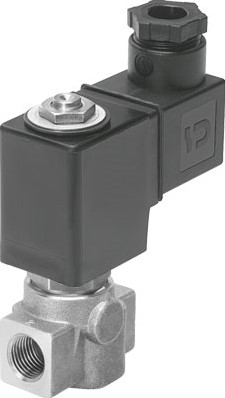

The VZWD-L-M22C-M-G14-25-V-1P4-22 (1491843) is a solenoid valve from Festo and electrically switches a compressed-air flow on or off.
- Design: Directly actuated poppet valve
- Type of actuation: Electrical
- Sealing principle: Soft
- Mounting position: Any
- Type of mounting: Inline installation
- Connection Process valve: G1/4
- Electrical connection: Type A Plug To EN 175301-803 Square design
- Nominal size: 2.5 mm
- Valve function: 2/2-way, single solenoid, closed
- Manual override: None
- Flow direction: Non-reversible
- Medium: Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases Mineral oil Water Neutral fiuids Other media on request
- Nominal pressure PN: 100
- Pressure difference: 0 MPa 0 bar 0 psi
- Characteristic coil data: 24 V DC: 11.0 W
- Insulation material class: H
- Permissible voltage fluctuations: +/-10%
- Duty cycle: 100%
- Type of reset: Mechanical spring
- Type of piloting: Direct
- Medium pressure: 0 MPa...2.2 MPa 0 bar...22 bar 0 psi...319 psi
- Max. viscosity: 22 mm²/s
- Media temperature: -10 °C...80 °C
- Ambient temperature: -10 °C...35 °C
- Leakage rate to EN 12266-1: A
- Flow rate Kv: 0.16 m³/h
- Standard nominal flow rate (standardised to DIN 1343): 170 l/min
- Switching time on: 20 ms
- Switching time off: 18 ms
- Note on materials: RoHS compliant
- LABS (PWIS) conformity: VDMA24364 zone III
- Material housing: Cast brass
- Material number housing: CW617N
- Material seals: Fluoro rubber
- Material plunger tube: High-alloy steel
- Product weight: 550 g
- Degree of protection: IP65
- Corrosion resistance class CRC: 1 - Low corrosion stress
- Max. tightening torque for connecting thread: 35 Nm
- Max. tightening torque for coil fastening: 2 Nm
