Product description

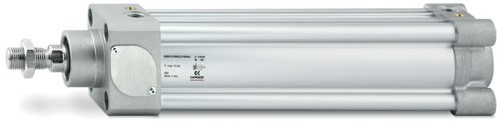

The 63MP2C100A1000FL is an ISO 15552 cylinder from Camozzi and provides linear motion to ISO 15552 standard dimensions, interchangeable with other brands to the same standard.
- Series: 63
- Version: Standard, magnetic
- Type of Design: Profile tube
- Operation: Double acting
- Cushioning: Cushioning on both sides
- Bore: 100
- Construction type: Standard with rod nut
- Stroke: 1000 mm
- Stroke2: 0 mm
- Lock type: Front lock
- Temperature range: = standard (-20°/+80°C)
- Resistence to corrosion: = standard
- Manual unlock type: = manual with M3 screw (not included)
- End caps options: = standard
- Seal options: = standard
- Rod seal protection options: = standard
- Bellows protection options: = standard
- Rod length: 0 mm
- Rod length 2: 0
- Certifications: = standard
Not sure this is the right version? Ebora's technical team is happy to help you choose.
