Product description

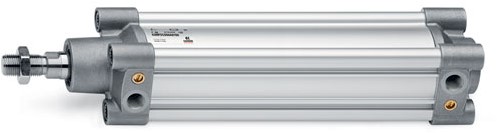

Camozzi ISO 15552 cylinder (63MP2C080A0075C5) provides linear motion to ISO 15552 standard dimensions, interchangeable with other brands to the same standard.
- Series: 63
- Version: Standard, magnetic
- Costrction: Profile tube
- Operation: Double effect
- Cushioning: Cushioning on both sides
- Bore: 80 mm
- Type of Design: Standard with lock nut for rod
- Stroke type: = standard
- X1 ( stroke cylinders) it has to be smaller of X2: 75 mm
- X2 ( stroke cylinders) it has to be greater of X1: 0 mm
- Temperature Range: = standard (-20°/+80°C)
- Resistence to corrosion: (C3) treated end cap screws (profile) or tirant nuts AISI 303 and tirants AISI 420B (tube) + rod nut AISI 316, rod AISI 316. + end caps with triple protection
- Rod options: = standard (male thread rod)
- End caps options: = standard
- Seal options: = standard
- Rod seal protection options: = standard
- Bellows protection options: = standard
- Rod length: 0 mm
Not sure about the right size or version? Ask Ebora for advice or order 63MP2C080A0075C5 directly.
