Product description

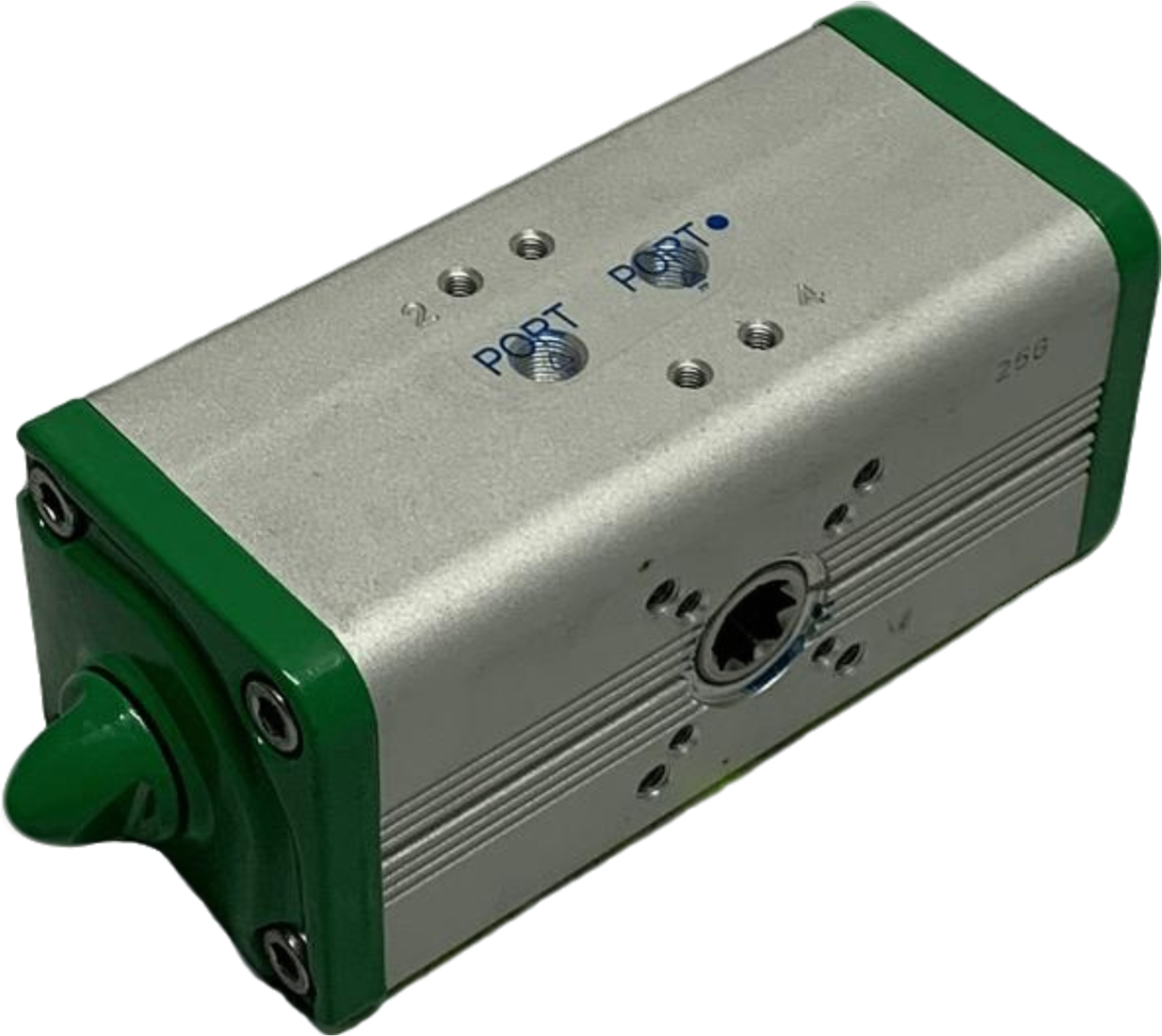

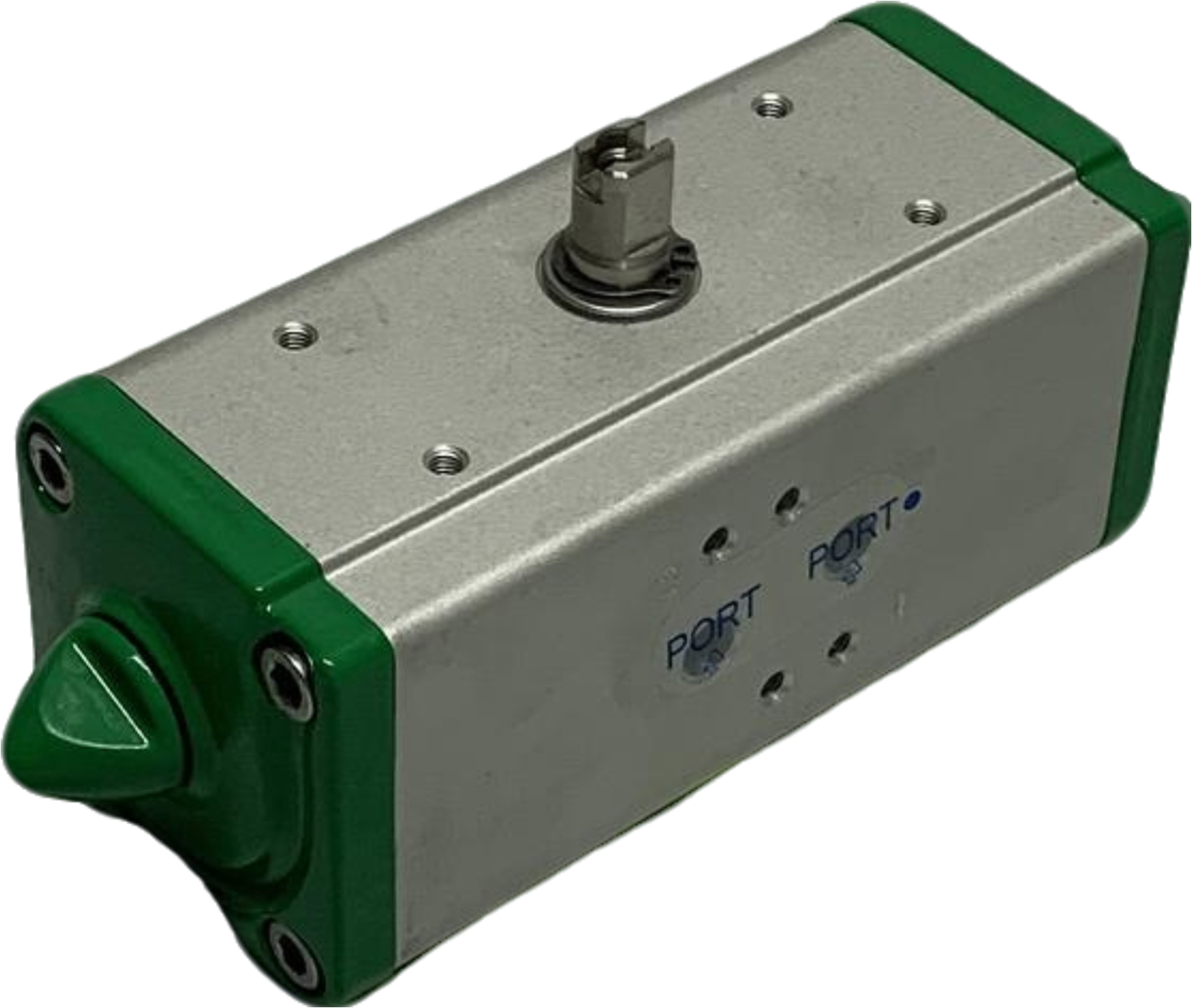

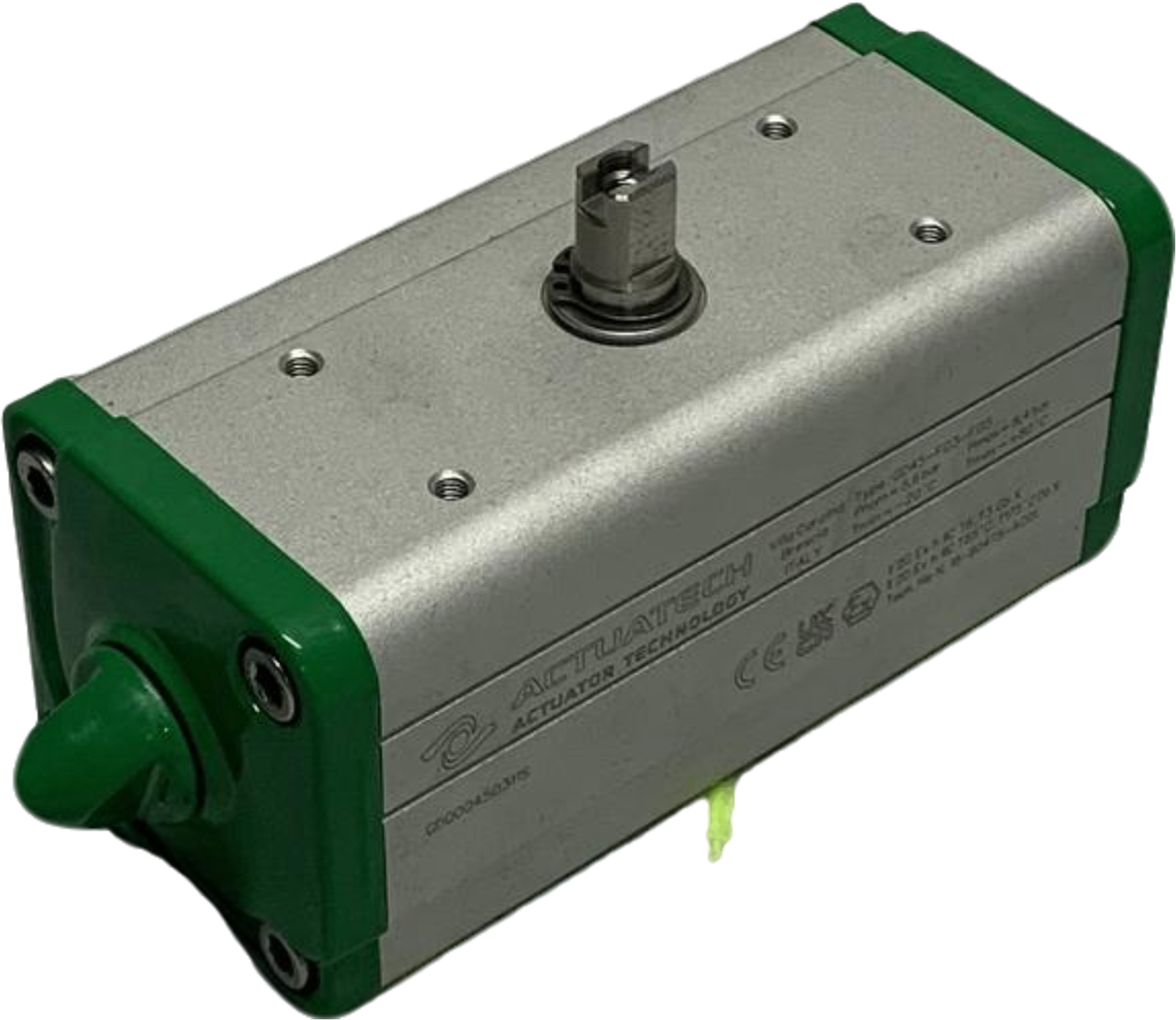

Actuatech Pneumatic Scotch Yoke Actuator GD45, Double Acting, ISO 5211 F03/F05
This Actuatech GD45 actuator is used when you want to operate a ball valve or butterfly valve with an ISO 5211 F03/F05 connection pneumatically in both directions, without spring return.
Features:
Model: GD45
Actuator type: Scotch yoke
Action: Double acting
Torque: 45 Nm (breakaway torque at 5.6 bar)
Mounting standard: ISO 5211 F03/F05
Shaft shape: star shaft, 11 mm
Weight: 1.2 kg
Air consumption: 0.22 dm³ per cycle
Air supply: nominal 5.6 bar, maximum 8.4 bar
Temperature range: standard -20°C to +80°C (optional -50°C/+60°C or -20°C/+150°C)
Body material: aluminium alloy
Shaft material: stainless steel
Standards: EN 15714-3, ATEX 2014/34/EU
Brand: Actuatech
Application:
The double acting version is lighter than the comparable spring return version at the same torque, since no spring cartridge is needed. Suitable for process control and on/off operation where fail-safe action is not required.
Do you need a fail-safe version instead? Ebora's technical team advises on the options within the Actuatech GS series, or prepares a quote directly.
