Product description

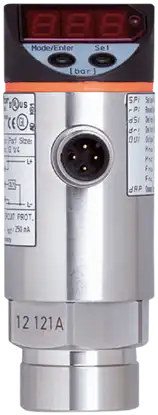

Pressure sensor with display IFM PN2226 measuring range -0,13...2,5 bar 1/4" NPT female thread
Item number: PN2226
Manufacturer code: PN-2,5-RBN14-MFRKG/US/ /V
Benefits:
Two switching outputs, one of them programmable as analogue output
Clearly visible 4-digit LED display
Country-specific pressure units selectable
With long-term stability thanks to high overload protection
Selectable output polarity
Features:
Measuring range: -0,13...2,5 bar
Connection: 1/4" NPT female thread
Protection rating: IP 65
-130...2500 mbar
-1,45...36,25 psi
-12,5...250 kpa
switching signal
analogue signal
IO-Link (configurable)
4...20 (scalable 1:4) mA
0...10 (scalable 1:4) V
connector
-25...80 °C
relative pressure
