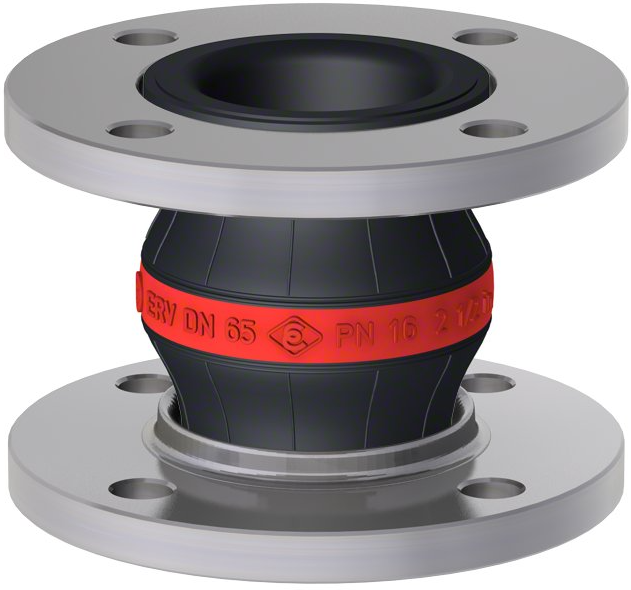

EPDM expansion joint Elaflex ERV-R red band, galvanized steel flanges DIN PN16, DN65 L=130 mm
Features:
Type: Elaflex ERV-R (red band)
Nominal diameter: DN65
Overall length: 130 mm
Flanges: DIN PN16
Flange material: galvanized steel
Bellows: EPDM
Elaflex order code: ERV-R 65.16
Elaflex part number: 14410712
Properties Elaflex ERV-R:
For water, drinking water (approval ELL as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones
Can be used in oily atmospheric environments, e.g. engine rooms
Temperature range (depending on medium) -40°C up to +100°C, temporarily up to +120°C
Electrically dissipative
Not suitable for all kinds of mineral oil products, cooling water with added oil containing corrosion preventatives, oily compressor air
Liner: Butyl (IIR)/EPDM, seamless, low permeation
Reinforcement: PA textile cord, Butyl rubberized
Cover: EPDM, ozone proof, heat resistant
Marking: Red band, ERV DN .., PN .., production date
Flanges: Swivelling, DIN PN 10/16, carbon steel, zinc plated
Since July 1, 2026, the ERV-R is no longer approved for use in new installations under the German Drinking Water Ordinance (TrinkwV). For drinking water applications, a new ERV-R (WHC) version is available.
