Product description

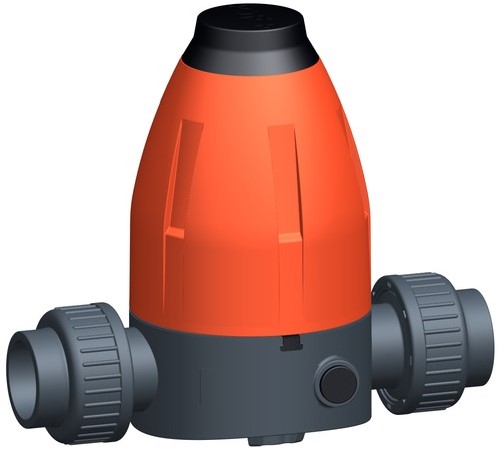

Pressure retaining valve type 586 PVC-U d25 / DN20 metric FKM Socket
Where a constant upstream pressure is essential, the type 586 pressure retaining valve offers a reliable solution: it regulates the pressure ahead of the valve, independent of flow fluctuations.
Item number: 161586113
Unions with solvent cement sockets metric Without manometer
Features:
Main Material: PVC-U
Material: PVC-U
Plastic Material: PVC-U
d: 25 mm
DN: 20 mm
Size: 3/4 inch
PN: 10 bar
Standard: metric
End Connection: Socket
Systems: PVC-U
Type: Type 586
Jointing Technology: Cementing
Business Field: Industry
Pressure (PN): 10
Sealing Material: FKM

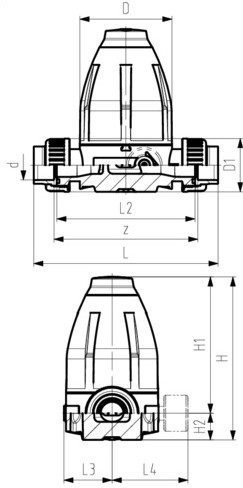

Dimensions:
D: 100 mm
D1: 51 mm
H: 177 mm
H1: 148 mm
H2: 29 mm
H3: 14 mm
L: 194 mm
L2: 150 mm
L3: 53 mm
M: M6
z: 156 mm
closest inch: 3/4 inch
Order Pressure retaining valve type 586 PVC-U easily online at Ebora.
