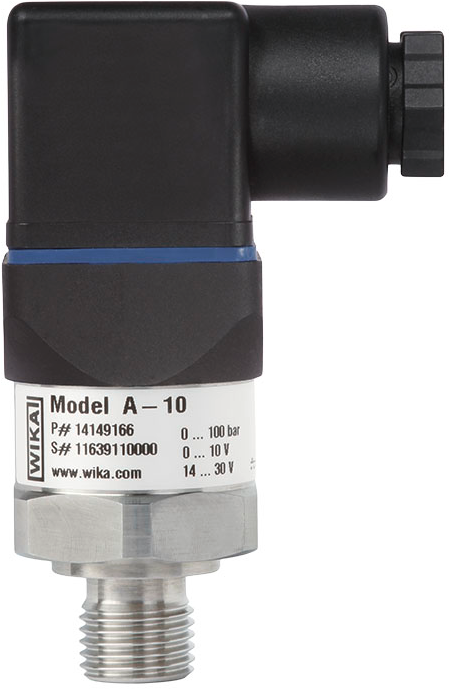

Pressure transmitter Model A-10 for general applications
Wetted parts: 316L
Case: 316L
Non-linearity: 0.5% BFSL
Unit: bar
Pressure type: gauge
Measuring range: 0...16 bar gauge
Process connection: G 1/4 A DIN 3852-E
Sealing: EPDM
Permissible medium temperature: 0...+80 °C
Output signal: 4 ... 20 mA, 2-wire
Power supply: 8...30 V DC
Electrical connection: valve connector, size A
Approvals: cULus / EAC
Customer logo: WIKA standard
Customer address: www.wika.com
Model name customer-specific: WIKA A-10
Type of packaging: folding box single
pin assignment el. connection: UB=1, 0V= 2
Model: A-10
