Artikelomschrijving

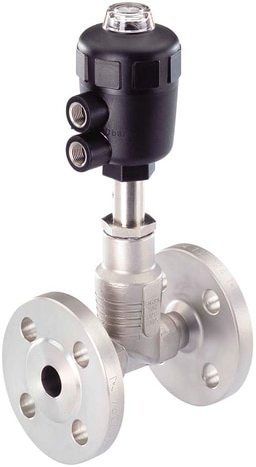

Type 2012 2012
Control function A closed by spring force
Paths/positions 2 2 ways / 2 position
Orifice size 25,0 25mm (1")
Seal material EE PTFE
Material VA stainless steel
Port connection FD24 Flange according to DIN EN 1092-1 for DN25 (PN25) (old: DIN 2634)
Actuator version C PA-actuator, VA-threaded bushing at connection of pilot air
Actuator size D Dm 50mm
Interface N3 nipple thread M40 x 1,5 (standard DN 25)
connection of pilot air AB02 thread G1/4, sleeve
Bijzonderheden
MC13 flow above seat
MS74 mounted with V-ANTR
PX51 EPS 18 ATEX 2 008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4 Gb / Ex h IIIC T135°C Db
Pressure min 0 bar
Pressure max 16 bar
Pilot pres. min 2,70 bar
Pilot pres. max 10 bar
Pilot pres. req. 5 bar
KV 12 m3/h
T medium min -10 °C
T medium max 185 °C
T ambient min -10 °C
T ambient max 40 °C
